Description
Overview
Features :

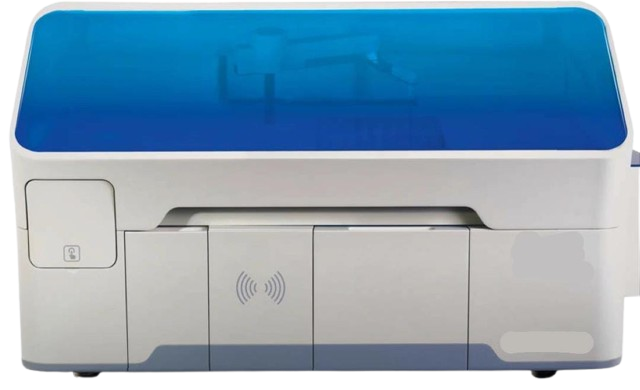

- Fully Automated Chemiluminescence Immunoassay system (CLIA)
- Two important technologies used labelling & separation technology
- Reagent features flash Chemiluminescence label-ABEI, with high sensitivity and long stability, Nano magnetic microbeads for fast and efficient separation
- Labelling technology determines the reaction mode, separation technology determines sensitivity, accuracy and precision of reagents
- For small and middle sized labs or hospitals
- More than enough test menu to meet the different needs of the customer
- Free quality control and calibrator helps to reduce the cost per test
- User friendly software, real time status monitoring of each test
- Bidirectional, LIS can connect by online and ASTM
Technical Specifications :
| Throughput: | 180 Tests/hour |
| Time to first Result: | 17 Minutes |
| Modes of Operation: | Random, Batch & STAT |
| Sample Loading: | Up to 40 sample tubes, continuous loading & STAT available |
| Reagent Loading: | 9 on-board reagents, continuous loading, RF ID reading all info of reagent |
| Reagent Integral: | Ready-to-use, no pre-treatment required, RF ID with built-in master curve |
| Calibration: | 2 Point Calibration to adjust master curve |
| Calibration Stability: | Max 4 weeks |
| Reagent /Sample Probe: | Liquid level and clot detection |
| Operating Systems: | Windows 7, DELL compatible (Dual-core CPU) |
| Interconnection: | Bi-communication with LIS via ASTM protocol |
| Power Supply: | Input AC 110-230V, 50/60Hz, Max 630W |
| Dimension: | 102cm X 72cm X 56cm |
| Weight: | 73 Kg |
| Input and output: | 180 Tests/hour |
Free with the equipment :
- Starter kit 1+2
- Wash / System Liquid
- System Tubing Cleaning Solution
- Light Check
- Reaction modules (2304 TESTS)
- T3
- T4
- TSH
Specification Sheet
| Method | Immunoassay |
| Package Type | Device Packing |
| Brand | Snibe |
| Product Code | 23020003 |
| Package Size | 1 Unit |
